RTD30-X35 and RTD35-X35 2WD Rough Terrain Forklift for Cost Effective and Powerful Performance on Uneven Ground

基本情報
起源の場所: 中国
ブランド名: SINOLIFT
証明: CE, ISO9001
モデル番号: RTD30-X35 および RTD35-X35
書類: RTD30 RTD35.pdf
最小注文数量: 1セット
価格: 交渉可能
パッケージの詳細: Sandardの輸出パッケージ
受渡し時間: 15日
支払条件: L/C、D/A、D/P、T/T
供給の能力: 55ユニット
製品名: RTD30-X35 および RTD35-X35 2WD 不整地フォークリフトは、不整地でもコスト効率が高く強力なパフォーマンスを発揮します。 パワータイプ: ディーゼル
定格容量: 3000/6600kg/ポンド、3500/7700kg/ポンド サービス重量: 4800/10580kg/ポンド、5100/11350kg/ポンド
タイヤの種類(前/後): 空気圧 ホイールベース: 1835/72.2"mm/インチ
フォークのサイズ: 1220*125*45/48 "*5"*2" ミリメートル/インチ リフトの高さ: 3000/118"mm/インチ
保証: 1年 サービス後: オンラインサービス、無料のスパーツパーツ

Product Description:



RTD30-X35 and RTD35-X35 2WD Rough Terrain Forklift for Cost-Effective and Powerful Performance on Uneven Ground



The SINOLIFT RTD30-X35 and RTD35-X35 2WD Rough Terrain Forklifts are engineered for heavy-duty lifting and transporting on challenging, uneven outdoor sites. Designed for reliability and operator comfort, they feature powerful engines, high ground clearance, and excellent stability to ensure maximum productivity and safety in the toughest environments.



Product Highlights:



  1. Rugged Terrain Performance: Built with heavy-duty frames, high ground clearance, and industrial pneumatic tires for superior traction and stability on the toughest outdoor surfaces.
  2. Powerful & Reliable Engine: Equipped with a high-torque, 4-cylinder diesel engine (YANMAR 4TNE98) that meets stringent emission regulations, delivering consistent power for demanding tasks.
  3. Operator-Focused Design: Features like the wide-view mast for enhanced visibility, a spacious cab, a floating overhead guard, and shock absorbers significantly reduce operator fatigue and improve safety.
  4. Enhanced Maneuverability & Serviceability: The upward steering cylinder ensures a compact turning radius, while the nearly 90-degree opening engine hood and tilting overhead guard simplify daily maintenance and repairs.
  5. Built for Harsh Environments: The double core straight air filter provides strong air purification, and the robust drive axle with enhanced brakes offers ultimate traction in adverse conditions.
  6. Cost-Effective Solution: Offering the power and performance of more expensive models at a significantly lower cost, this series represents exceptional value without compromising on capability or reliability.



Application Places:



The SINOLIFT 2WD Rough Terrain Forklift is the ideal solution for material handling in demanding outdoor and semi-outdoor environments. It excels in sectors such as construction sites, lumber yards, steel mills, agricultural settings, and freight/logistics terminals. Its ability to navigate uneven ground and handle heavy loads safely makes it perfect for applications where paved surfaces are absent or unstable, ensuring operational continuity and efficiency across various rugged industries.



Product Specifications:

Model   RTD30-X35 RTD35-X35
Power Type   Diesel Diesel
Rated Capacity kg/lbs 3000/6600 3500/7700
Load Centre mm/inch 600/23.6" 600/23.6"
Service Weight kg/lbs 4800/10580 5100/11350
Tyre Type (Front/Rear)   Pneumatic Pneumatic
Wheel number X=Drive Wheel (Front/Rear)   2X/2 2X/2
Vacuum Tyre Front   14-17.5-14PR 14-17.5-14PR
Rear   27x10-12-12PR 27x10-12-12PR
Tread Front mm/inch 1250/49" 1250/49"
Rear mm/inch 1205/47.4" 1205/47.4"
Wheel Base mm/inch 1835/72.2" 1835/72.2"
Fork Size L×W×T mm/inch 1220*125*45/48"*5"*2" 1220*125*45/48"x5"x2"
Mast Tilt Angle F/R Deg 10°/12° 10°/12°
Lift Height mm/inch 3000/118" 3000/118"
Mast Lowered Height mm/inch 2205/86" 2240/88"
Free Lift Height mm/inch 125/4.9" 90/3.54"
Mast Extended Height mm/inch 4180/164.5" 4180/164.5"
Length to Face of Fork (without Fork) mm/inch 3046/120" 3116/120"
Overall Width mm/inch 1605/63" 1605/63"
Overhead Guard Height   mm/inch 2150/84.6" 2150/84.6"
Front Overhang   mm/inch 591/23.2" 606/23.8"
Rear Overhang   mm/inch 620/24.4" 675/26.5"
Turning Radius(outside)   mm/inch 2750/108.2" 2810/110.6"
Ground Clearance (Bottom of chassis)   mm/inch 230/9" 230/9"
Min. Insecting Aisle   mm/inch 2900/114" 2960/116.5"
Min. Right Angle Stacking Aisle Width   mm/inch 4550/179" 4610/181.5"
Speed Travel (Unloaded/Loaded) km/h(mph) 17(11.3/18(12) 17(11.3/18(12)
Lifting (Unloaded/Loaded) mm/s (inch/s) 430(17")/500(19.7") 400(15.7")/500(19.7")
Lowing (Unloaded/Loaded) mm/s (inch/s) ≤600(23.6") / ≥300(11.8") ≤600(23.6") / ≥300(11.8")
Max. Gradeability % 20 20
Engine Code   Y2 Y2
Engine Model Type   YANMAR 4TNE98-BQFLC
Rated output Kw/r.p.m 42.1/2300 42.1/2300
Rated Torque Nm/r.p.m 206/1700 206/1700
No. of Cylinder   4 4
Bore x Stroke mm 98 x110 98 x110
Displacement cc 3318 3318
Emission Standard   EURO IIIA EURO IIIA
Fuel Tank Capacity Litre 55 55
Battery (Voltage/Capacity) V/Ah 12/80 12/80
Transmission Type   Hydraulic Hydraulic
Shift Stage FWD/RVS   1/1 1/1
Operating Pressure Mpa 18 18

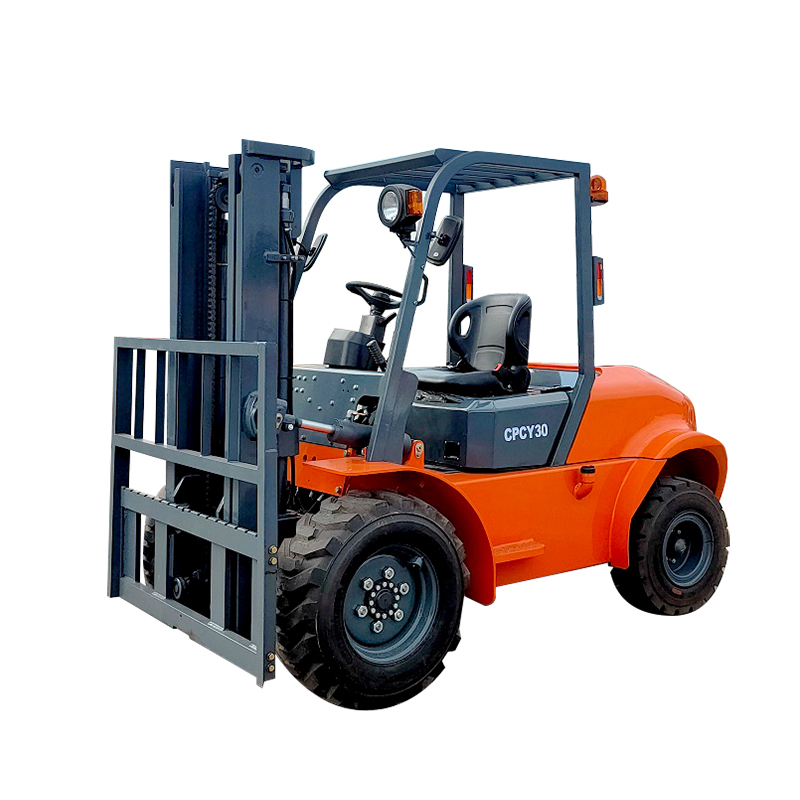

RTD30-X35 and RTD35-X35 2WD Rough Terrain Forklift for Cost Effective and Powerful Performance on Uneven Ground 0

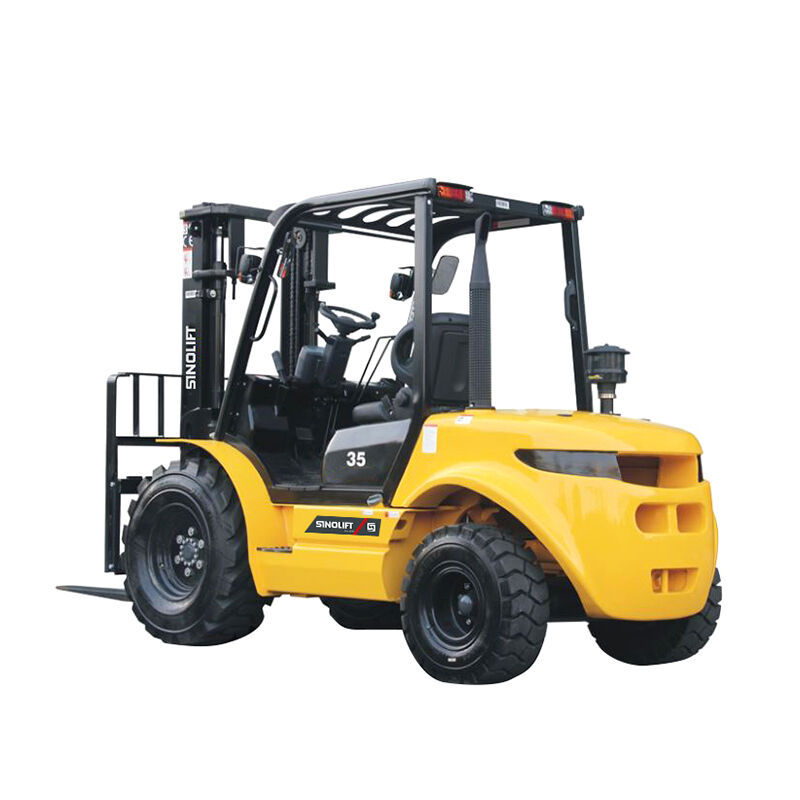

RTD30-X35 and RTD35-X35 2WD Rough Terrain Forklift for Cost Effective and Powerful Performance on Uneven Ground 1

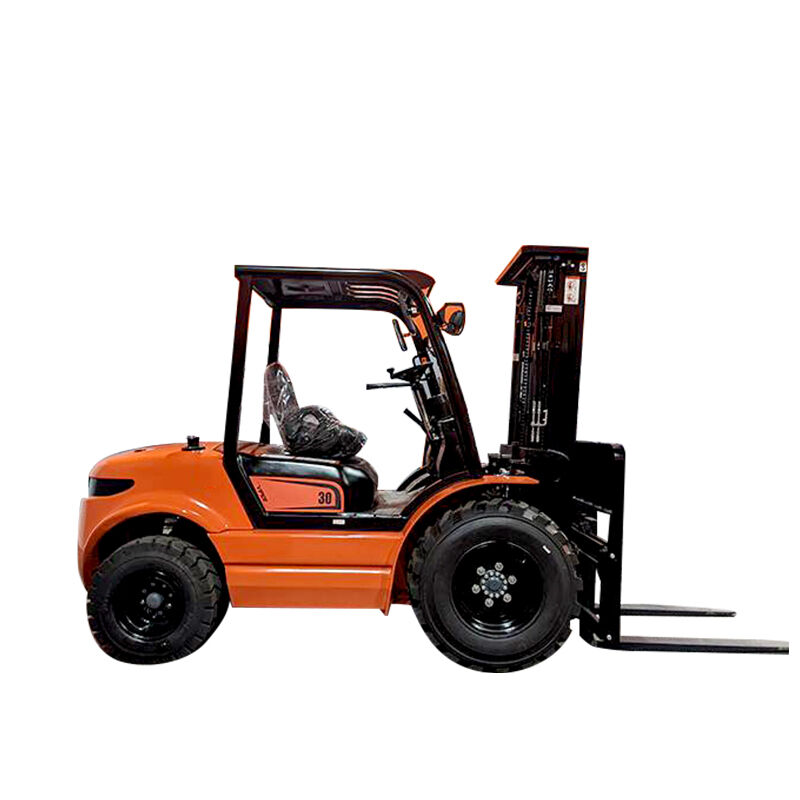

RTD30-X35 and RTD35-X35 2WD Rough Terrain Forklift for Cost Effective and Powerful Performance on Uneven Ground 2

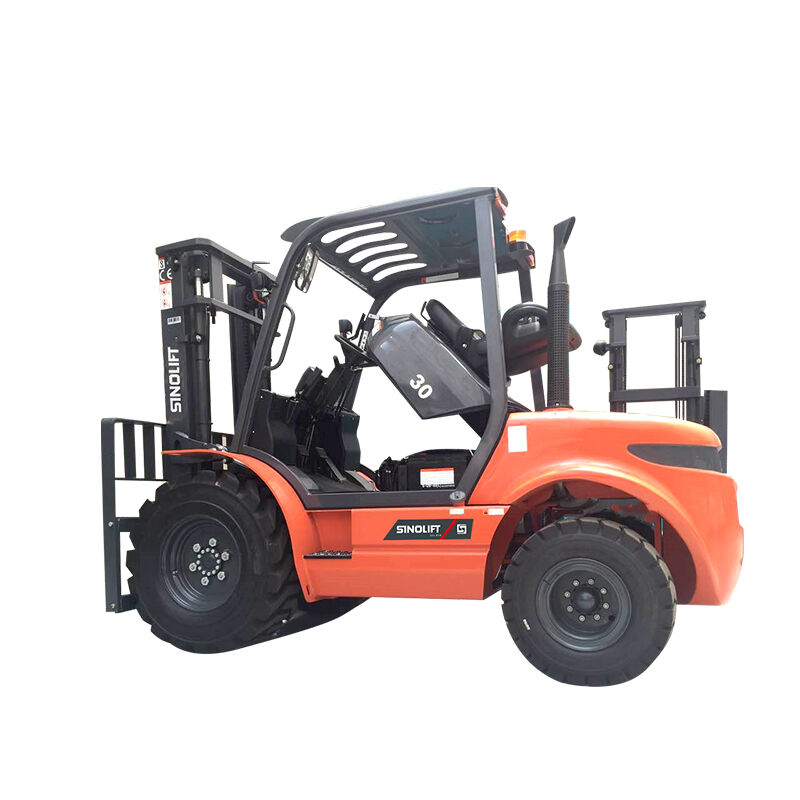

RTD30-X35 and RTD35-X35 2WD Rough Terrain Forklift for Cost Effective and Powerful Performance on Uneven Ground 3

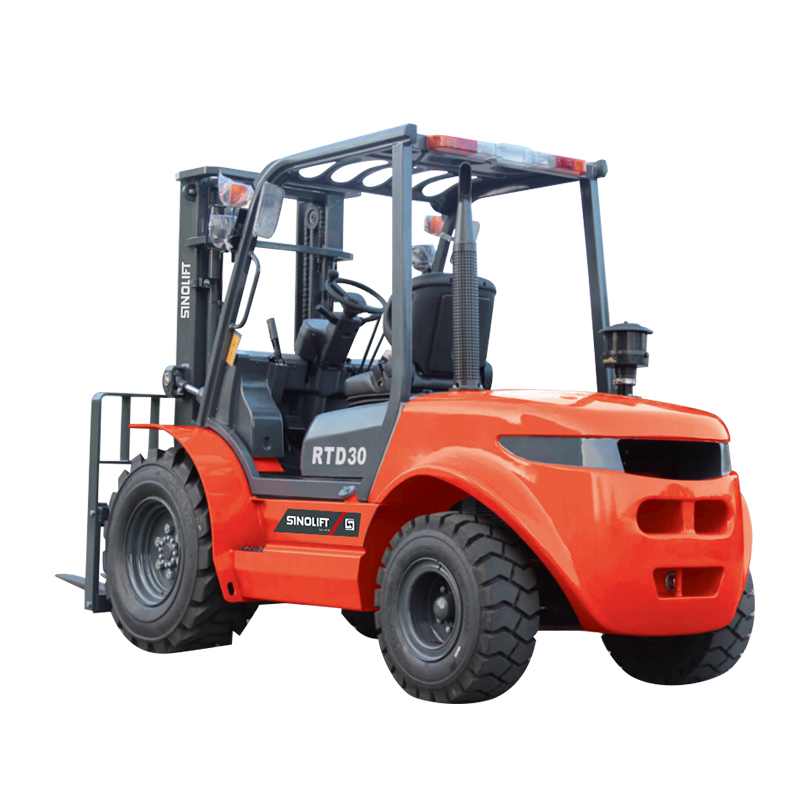

RTD30-X35 and RTD35-X35 2WD Rough Terrain Forklift for Cost Effective and Powerful Performance on Uneven Ground 4

RTD30-X35 and RTD35-X35 2WD Rough Terrain Forklift for Cost Effective and Powerful Performance on Uneven Ground 5

RTD30-X35 and RTD35-X35 2WD Rough Terrain Forklift for Cost Effective and Powerful Performance on Uneven Ground 6

RTD30-X35 and RTD35-X35 2WD Rough Terrain Forklift for Cost Effective and Powerful Performance on Uneven Ground 7

RTD30-X35 and RTD35-X35 2WD Rough Terrain Forklift for Cost Effective and Powerful Performance on Uneven Ground 8

RTD30-X35 and RTD35-X35 2WD Rough Terrain Forklift for Cost Effective and Powerful Performance on Uneven Ground 9
