| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Sinolift |
| 証明: | CE |
| モデル番号: | NPS |
| 最小注文数量: | 1セット |
| 価格: | 交渉可能 |
| パッケージの詳細: | Sandardの輸出パッケージ |
| 受渡し時間: | 15日 |
| 支払条件: | T/T、L/C、D/A、D/P、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 1000セット/口 |
| 製品名: | NPSハンドリングステンレス油圧パレットトラック | 応用: | 産業用 |
|---|---|---|---|
| 保証: | 1年 | アフターサービス: | オンライン サービス、予備品 |
Product Description:
The SINOLIFT NPS Stainless Steel Hydraulic Pallet Truck is specifically designed for demanding environments where corrosion resistance, hygiene, and long-term durability are essential. Constructed with high-quality stainless steel components, it delivers outstanding performance in wet, humid, and corrosive working conditions. Featuring an ergonomic design, reliable hydraulic system, and heavy-duty frame, the NPS series provides smooth, safe, and efficient material handling for a wide range of industrial applications.
Key Features:
Premium Stainless Steel Construction
The handle and hydraulic pump are manufactured from high-quality stainless steel, offering excellent resistance to rust, acids, and corrosion. This ensures reliable operation and an extended service life, even in harsh working environments.

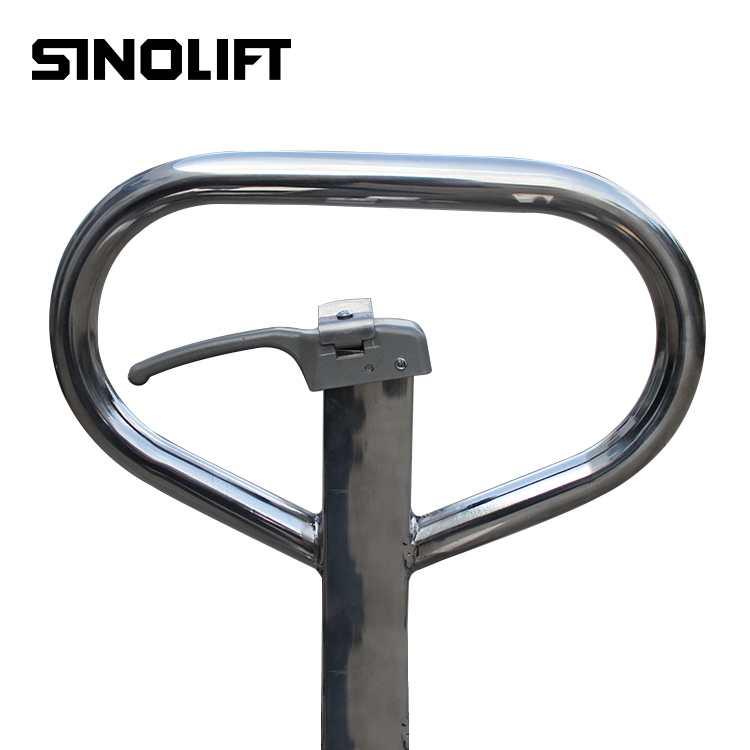

Ergonomic and User-Friendly Design
The pallet truck features an ergonomic handle with three operating positions—lifting, neutral, and lowering—allowing operators to handle loads comfortably with minimal effort. Its simple and flexible operation improves overall working efficiency.
Reinforced Heavy-Duty Frame
The forks and triangular support plate are produced using one-piece forming technology combined with automatic welding. This manufacturing process increases structural strength by approximately 25%, ensuring the forks maintain their shape under normal operating conditions.
High-Performance Hydraulic Pump
Equipped with a stainless steel hydraulic pump, the truck effectively prevents oil leakage while delivering smooth and stable lifting performance. The optimized 190° steering angle and efficient hydraulic system provide excellent maneuverability and lifting precision.

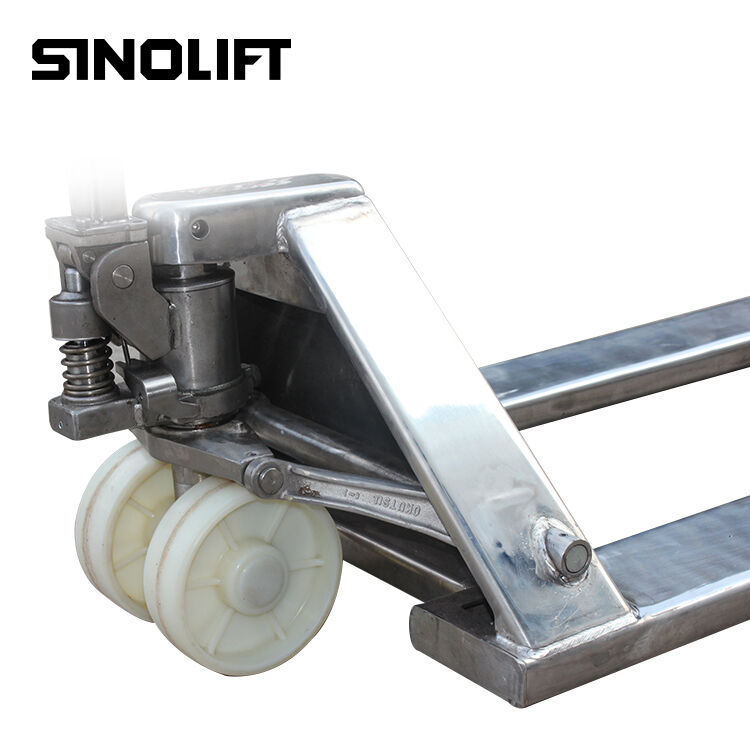

Reliable Steering System
The integrated steering design utilizes high-quality radial roller bearings at the rotating shaft connection, ensuring smooth steering, reduced operating resistance, and enhanced durability during continuous use.
Application Scenarios:
The SINOLIFT NPS Stainless Steel Hydraulic Pallet Truck is ideal for environments requiring both cleanliness and corrosion resistance. It is widely used in:
Designed for reliable performance in humid, corrosive, or hygiene-sensitive environments, the NPS pallet truck offers an efficient and durable solution for everyday material handling operations.
| Model | NPS25-510(511) | NPS25-712 | NPS30-510(511) | NPS30-712 | |
| Type | SS304 stainless | SS304 stainless | SS304 stainless | SS304 stainless | |
| Capacity (Q) | kg | 2500 | 2500 | 3000 | 3000 |
| Width overall forks (W1) | mm | 520 | 685 | 520 | 685 |
| Fork Length (L1) | mm | 1070(1150) | 1220 | 1070(1150) | 1220 |
| overall Length (L2) | mm | 1430 | 1590 | 1430 | 1590 |
| Overall Height (H) | mm | 1190 | 1190 | 1190 | 1190 |
| Min. Fork Height (H2) | mm | 80 | 80 | 80 | 80 |
| Fork lifting Height (H1) | mm | 200 | 200 | 200 | 200 |
| Fork Length (W2) | mm | 150 | 150 | 150 | 150 |
| Fork Inner Width | mm | 220 | 385 | 220 | 385 |
| Steering Wheel (A) | mm | Ø180X65 white Nylon Wheel | |||
| Load roller Tandem (B) | mm | Ø78X70 white Nylon Wheel | |||
| Load roller Single (B) | mm | ||||
| Net Weight | kg | 75(76) | 79 | 78(79) | 82 |
