| 起源の場所: | 中国 |
|---|---|
| ブランド名: | SINOLIFT |
| 証明: | CE, ISO9001 |
| モデル番号: | QSD30 QSD60 |
| 書類: | SINOLIFT QSD30 QSD60 Rider ...re.pdf |
| 最小注文数量: | 1セット |
| 価格: | 交渉可能 |
| パッケージの詳細: | Sandardの輸出パッケージ |
| 受渡し時間: | 15日 |
| 支払条件: | L/C、D/A、D/P、T/T |
| 供給の能力: | 1000セット/口 |
| 製品名: | Sinolift QSD30 QSD60ライダー電気牽引トラクター | ドライビングスタイル: | 歩行者 |
|---|---|---|---|
| 負荷容量: | 6000kg | 保証: | 1年 |
| サービス後: | オンラインサービス、無料のスペアパーツ |
https://youtu.be/884WS1T3A2k?si=tvLXZFLng4kHLdcS
Product Name

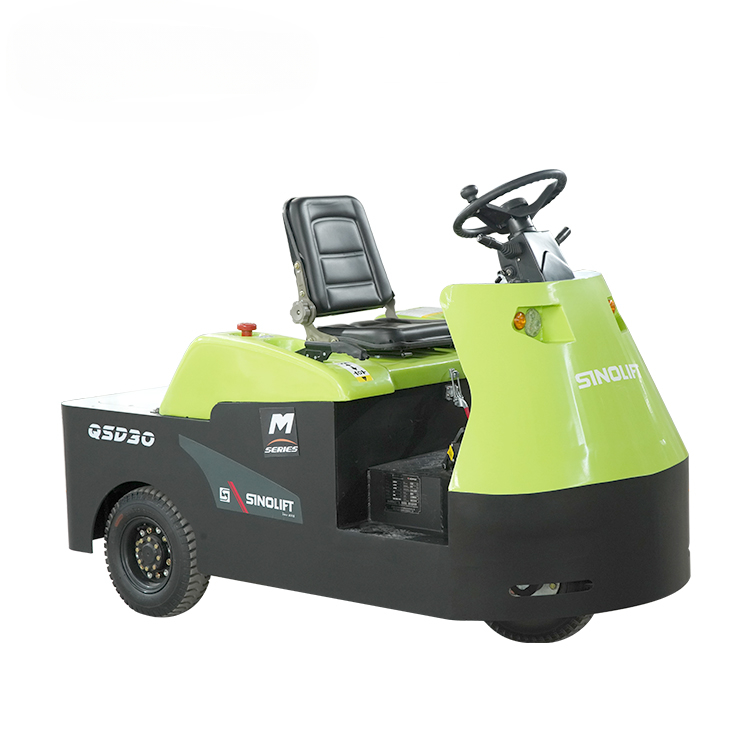

SINOLIFT QSD30 QSD60 Rider Electric Tow Tractor
The SINOLIFT QSD30/QSD60 rider-seated electric tow tractor incorporates German engineering and design, outperforming competitors in strength, versatility, and usability. Designed for efficiently towing heavy products and industrial equipment throughout your facility, this electric tow tractor operates with minimal noise, effortlessly moving materials from point A to point B. Ideal for distribution centers, factories, and warehouses, it ensures quiet and reliable performance in any demanding environment.
Features
Product Specifications
| ldentification | 1.1 | Manufacturer | SINOLIFT | |||
| 1.2 | Model | QSD30 | QSD60 | |||
| 1.3 | Power Type | Electric | ||||
| 1.4 | Type of operation | Seated | ||||
| 1.5 | Steering Mode | Electric Power Steering | ||||
| 1.6 | Wheelbase | y | mm | 1110 | 1110 | |
| Weight | 2.1 | Total Weight(with battery) | kg | 985 | 1180 | |
| 2.2 | Axle Load(unladen): Drive side/Load-bearing side | kg | / | / | ||
| Dimension | 3.1 | Overall length | L1 | mm | 2030 | 2030 |
| 3.2 | Overall width | W1 | mm | 1020 | 1020 | |
| 3.3 | Overall height | h5 | mm | 1350 | 1350 | |
| 3.4 | Couping Height(Hook center above ground) | h1 | mm | 300/350/400 | 300/350/400 | |
| 3.5 | Standing Platform | h2 | mm | 965 | 965 | |
| 3.6 | Ground Clearance at the center of wheelbase (Min) | m1 | mm | 110 | 110 | |
| 3.7 | Turning Radius | Wa | mm | 1520 | 1520 | |
| Tyre | 4.1 | Tyre Type | Inflatable rubber wheel | |||
| 4.2 | Tyre Size(Front) | mm | 4.00-8 | 4.00-8 | ||
| 4.3 | Tyre Size(Rear) | mm | 4.00-8 | 4.00-8 | ||
| 4.4 | Wheels Quantity, front/rear (x=driving wheels) | 1X/2 | 1X/2 | |||
| Performance | 5.1 | Traveling Speed(laden/unladen) | Km/h | 7.5/15 | 7.5/15 | |
| 5.2 | Rated Draw-bar Pull | F | N | 3800 | 4500 | |
| 5.3 | Max.Gradient Performance S25min laden/unladen) | % | 6/15 | 6/15 | ||
| 5.4 | Service Brake Type | Hydraulic | Hydraulic | |||
| 5.5 | Parking Brake Type | Mechanical | Mechanical | |||
| Power Unit | 6.1 | Drive Motor Rating(AC) S2-60min | kW | 5 | 5 | |
| 6.2 | Battery Vo ltage/Capacity K5 | V/Ah | 48/200 | 48/350 | ||
| 6.3 | Battery Weight | kg | 360 | 545 | ||
| Others | 7.1 | Controller Brand | CURTIS | CURTIS | ||
| 7.2 | Controller Model | 1232SE | 1232SE | |||
| 7.3 | Sound level at the driver's ear according to EN 12053 | dB | 70 | 70 | ||
